Superseded by New Improved DST Digital Force Gauge
Simple operation, easy-to-use, accurate
Large easy-to-read LCD display
Ergonomic, durable, heavy-duty metal construction
Push-button selectable lbf, kgf, and Newton units
RS-232C, Digimatic and analog outputs
Programmable High/Low setpoints with LCD indicators
Overload capacity 200% F.S.
Overload alarm, display flashes at overload limit
Low battery icon
Runs on internal NI-MH batteries or AC adapter
Selectable real time or peak mode operation
Push-button tare function
Set of six attachments, AC charger/adapter and carrying case

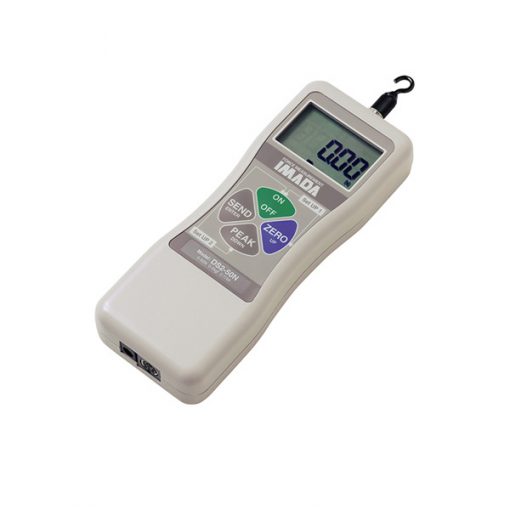

The DS2 series is Imada’s most economical digital force gauge. It features a large, easy-to-read LCD display and simple push-button operation. An ergonomic metal housing protects the highly accurate loadcell and electronics in tough industrial environments.
The gauge can measure both tension and compression, with an icon indicating the direction on the display. A low battery icon will appear when the NI-MH batteries are low. Overload icon will flash and unit will emit audible alarm at 110% of full scale.
If desired, you can program high/low setpoints to enable Go/NoGo testing using the LCD indicators. Standard outputs (RS-232C, Digimatic, and ±1VDC analog) enable you to acquire data for permanent records.
All gauges come with a 3-Point Certificate traceable to NIST. ISO Certificates are available at an additional charge. All gauges are sold in a complete kit with gauge, hard plastic carrying case, a set of six measuring attachments and AC adapter/charger. All gauges can run on the internal NI-MH batteries or the AC adapter/charger. An optional handle to facilitate the measurement of heavy loads is also available.
